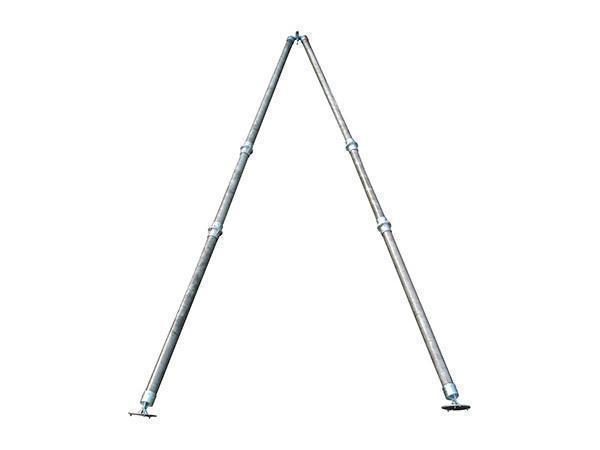

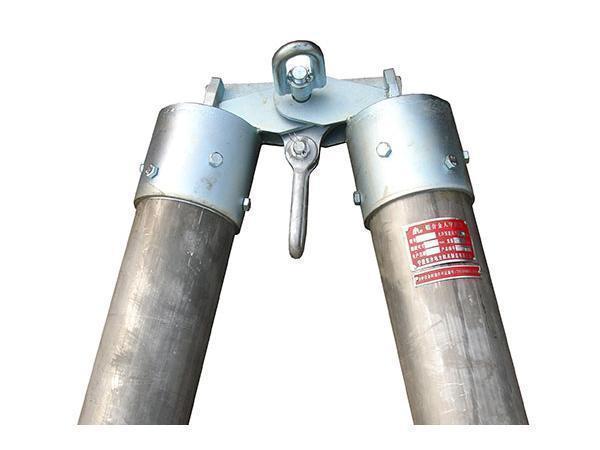

Our A-shape tubular gin pole serves to erect a small single pole as a whole or hoist moderate weight of components during the construction of transmission and distribution lines. Its head is classified as three types for option, including upending style, fixed style, and upending-fixed style. It might as well be specified while an order is placed. The safety factor of our product is 2.5.
Uses: to set up a small gin pole as a whole or hoist commonly heavy components
Notes:
1. Use high strength aluminum alloy tube as main materials,steel parts are galvanized.
2. Two kinds of head are optional: "upending style", "fixed style", please specify when placing orders.
3. The safety factor is 2.5
Main Specifications
| Item Number | Model | Base Stroke(m)/Allowable Vertical Load (kN) | Weight (kg/m) |
| 03301 | LBGR100A-6 | 2.1/18 | 5.5 |
| 03302 | LBGR100A-7 | 2.4/13 | |
| 03303 | LBGR100A-8 | 2.8/10 | |
| 03311 | LBGR120A-6 | 2.1/30 | 7.5 |
| 03312 | LBGR120A-7 | 2.4/26 | |
| 03313 | LBGR120A-8 | 2.8/21 | |
| 03314 | LBGR120A-9 | 3.1/17 | |
| 03321 | LBGR150A-8 | 2.8/31 | 8 |
| 03322 | LBGR150A-9 | 3.1/28 | |
| 03323 | LBGR150A-10 | 3.5/24 | |
| 03324 | LBGR150A-11 | 3.8/20 | |
| 03325 | LBGR150A-12 | 4.2/16 | |
| 03326 | LBGR150A-13 | 4.5/13 |
